Grafton Dress, Top & Skirt Mix & Match Pack

See #graftondress on Instagram

Grafton Dress, Top & Skirt Mix & Match Pack

$25

Size Size guide

0-16 12-32

Pattern format

PDF

Mix and match your way to a knit wardrobe that’s uniquely yours with the Grafton Dress, Top & Skirt Mix & Match Pack.

This curve-friendly sewing pattern comes with cup sizes C-H and multiple bodice, skirt, sleeve, and neckline options to make over 400 possible knit dresses, skirts, and tops. Sew a casual skater dress, a trendy asymmetrical skirt, a glamorous gown, an elevated tee, a retro frock, and so much more. You can craft a unique look every time you sew the Grafton!

This Cashmerette pattern includes:

Cup sizes from C to H
A sizing calculator which will tell you exactly which size to make
A beautifully illustrated and detailed instruction booklet, to guide you no matter your sewing level

Want to see how this pattern will look on you? Sketch your plans on a body outline croquis that's custom made to your measurements with MyBodyModel. Learn more »

Product information

SEWING LEVEL

Advanced beginner

SIZING

12 to 32, in three cup sizes (C/D, E/F, G/H); includes 40-62” bust and 42-62” hip. Find your size in seconds using our size calculator.

This pattern is also available in sizes 0-16 (sold separately).

RECOMMENDED FABRIC

Light- to mid-weight knit fabrics such as jersey, ITY, Liverpool knit, double knit, or ponte with at least 25% stretch both horizontally and vertically. There are two exceptions:

Relaxed bodice: at least 25% stretch horizontally, and at least 10% vertically.
A-line maxi skirt: due to the weight of the piece, 0-10% lengthwise stretch is ideal. You can use 25%+, but may need to adjust the length to account for the skirt stretching vertically.

If you are lining your bodice (for the square neckline, optional for all others), you can use the same fabric for the lining, or a lighter weight knit with the same amount of stretch.

Interfacing (turtle neckband only): lightweight stretch interfacing (optional)

NOTIONS

Ballpoint or stretch needle, thread, twin needle (optional for hem).

For elasticated waistband: 1.5 yd (1.4 m) of 1” (2.5 cm) wide elastic.

Optional: Clear elastic for shoulder seams (¾ yds/0.7 m), slash pocket openings (3/8 yd/0.3 m), and/or waist seam (1.5 yd/1.4 m).

Optional: Fusible hem tape (maximum of 6 yds /5.5 m).

Pattern features

Choose from numerous features that can be mixed and matched in over 400 combinations! Pattern features include:

BODICE

Relaxed bodice with dropped shoulders
Fitted bodice with waist darts
Each bodice can be made as a dress or top
Each bodice can be lined or unlined

NECKLINE

V neck with neckband or lining
Crew neck with neckband or lining
Scoop neck with neckband or lining
Turtleneck with neckband
Square neck with lining

SLEEVE

Relaxed bodice: grown-on drop sleeves or long sleeves
Fitted bodice: straight sleeves in short, mid, and long lengths; bishop sleeves; sleeveless with armhole facing or lining

SKIRT

A-line skirt in knee or maxi length with optional inseam pockets
Straight skirt in short, knee, or midi length with optional slash pockets and side slits
Asymmetrical draped skirt with optional slash pockets
3-panel circle skirt
Each skirt can be combined with any bodice option to make a dress or sewn on its own as a standalone skirt.

PDF pattern information

New to PDF sewing patterns? See our complete guide here.

The PDF comes in separate files so you only need to print the features you desire. You'll receive files to print at home or at a copy shop. Files are delivered as a .zip file which can be downloaded on a computer, but not on a mobile device. For more on PDFs, see the FAQs.

Total ZIP file size: 8 MB

Instructions: 49 pages

Print-at-home files:

Relaxed bodice: 46 pages
Fitted bodice, sleeved: 53 pages
Fitted bodice, sleeveless: 34 pages
Straight skirt: 11 pages
A-line skirt: 18 pages
Asymmetric skirt: 26 pages
Circle skirt: 13 pages

Copy shop (A0 size) files:

Relaxed bodice: 3 pages
Fitted bodice, sleeved: 3 pages
Fitted bodice, sleeveless: 2 pages
Straight skirt: 1 page
A-Line skirt: 1 page
Asymmetric skirt: 2 pages
Circle skirt: 1 page

Model Details

Rachel (purple & lime green dresses) is wearing a size 18 G/H graded to a 20 in the hips. Her measurements are high bust 43", full bust 49", waist 40" and hip 50". She is 5' 5”.

Rae (orange dress & green top) is wearing a size 24 E/F graded to a 30 in the waist and 26 in the hips. Her measurements are high bust 48", full bust 52.5", waist 50", hip 56", and she is 5' 5”.

Cynthia (floral skirt, orange & striped tops) is wearing a size 20 C/D graded to a 22 in the waist and hips. Her measurements are high bust 46", full bust 49", waist 42", and hip 52", and she is 5' 6”.

Jenny (maroon dress) is wearing a size 18 G/H graded to 14 in the hips. Her measurements are 43" high bust, 47" full bust, 39" waist, and 44" hips, and she is 5' 6".

Learn More

Fabric Requirements & Measurements

Body Measurements (in), sizes 12-32

	12	14	16	18	20	22	24	26	28	30	32
High Bust	37	39	41	43	45	47	49	51	53	55	57
Full Bust, C/D Cup	40	42	44	46	48	50	52	54	56	58	60
Full Bust, E/F Cup	41	43	45	47	49	51	53	55	57	59	61
Full Bust, G/H Cup	42	44	46	48	50	52	54	56	58	60	62
Waist	32	34	36	38	40	42	44	46	48	50	52
Hip	42	44	46	48	50	52	54	56	58	60	62
Bicep	12 ⅜	13 ¼	14 ⅛	15	15 ⅞	16 ¾	17 ⅝	18 ½	19 ⅜	20 ¼	21 ⅛

Finished Garment Measurements (in), sizes 12-32

		12	14	16	18	20	22	24	26	28	30	32
Full Bust, Relaxed bodice	C/D	42	44	46	48	50	52	54	56	58	60	62
	E/F	42 ¾	44 ¾	46 ¾	48 ¾	50 ¾	52 ¾	54 ¾	56 ¾	58 ¾	60 ¾	62 ¾
	G/H	43 ¾	45 ¾	47 ¾	49 ¾	51 ¾	53 ¾	55 ¾	57 ¾	59 ¾	61 ¾	63 ¾
Full Bust, Fitted Bodice	C/D	38 ⅜	40 ⅜	42 ⅜	44 ⅜	46 ⅜	48 ⅜	50 ⅜	52 ⅜	54 ⅜	56 ⅜	58 ⅜
	E/F	39 ⅜	41 ⅜	43 ⅜	45 ⅜	47 ⅜	49 ⅜	51 ⅜	53 ⅜	55 ⅜	57 ⅜	59 ⅜
	G/H	40 ⅜	42 ⅜	44 ⅜	46 ⅜	48 ⅜	50 ⅜	52 ⅜	54 ⅜	56 ⅜	58 ⅜	60 ⅜
Waist (no elastic)	Skirt/Dress, all views	32	34	36	38	40	42	44	46	48	50	52
	Top, Relaxed	38 ⅛	40 ⅛	42 ⅛	44 ⅛	46 ⅛	48 ⅛	50 ⅛	52 ⅛	54 ⅛	56 ⅛	58 ⅛
	Top, Fitted	36 ⅝	38 ⅝	40 ⅝	42 ⅝	44 ⅝	46 ⅝	48 ⅝	50 ⅝	52 ⅝	54 ⅝	56 ⅝
Hip	A-Line Skirt	44 ¼	46 ¼	48 ¼	50 ¼	52 ¼	54 ¼	56 ¼	58 ¼	60 ¼	62 ¼	64 ¼
	Straight Skirt	42 ⅛	44 ⅛	46 ⅛	48 ⅛	50 ⅛	52 ⅛	54 ⅛	56 ⅛	58 ⅛	60 ⅛	62 ⅛
	Asymmetrical Skirt	42 ⅛	44 ⅛	46 ⅛	48 ⅛	50 ⅛	52 ⅛	54 ⅛	56 ⅛	58 ⅛	60 ⅛	62 ⅛
	Circle Skirt	82 ⅜	84 ⅜	86 ⅜	88 ⅜	90 ⅜	92 ⅜	94 ⅜	96 ⅜	98 ⅜	100 ⅜	102 ⅜
	Top, relaxed & fitted	43 ⅞	45 ⅞	47 ⅞	49 ⅞	51 ⅞	53 ⅞	55 ⅞	57 ⅞	59 ⅞	61 ⅞	63 ⅞
Bicep	Long Sleeve	14 ⅞	15 ¼	15 ⅝	15 ⅞	16 ¾	17 ½	18 ⅜	19 ⅛	19 ⅞	20 ¾	21 ½
	Straight Sleeve	13 ½	14 ⅜	15 ¼	16 ⅛	17	17 ⅞	18 ¾	19 ⅝	20 ½	21 ¼	22 ⅛
	Bishop Sleeve	13 ⅞	14 ¾	15 ⅝	16 ½	17 ⅜	18 ⅛	19	19 ⅞	20 ¾	21 ⅝	22 ½
Back Length*	Relaxed Bodice	16 ½	16 ¾	17	17 ¼	17 ½	17 ¾	18	18 ¼	18 ½	18 ¾	19
	Fitted Bodice	14 ⅞	15 ⅛	15 ⅜	15 ⅝	15 ⅞	16 ⅛	16 ⅜	16 ⅝	16 ⅞	17 ⅛	17 ⅜
	A-Line Skirt, knee	22 ½	22 ½	22 ½	22 ½	22 ½	22 ½	22 ½	22 ½	22 ½	22 ½	22 ½
	A-Line Skirt, maxi	39	39	39	39	39	39	39	39	39	39	39
	Straight skirt, short	17 ¾	17 ¾	17 ¾	17 ¾	17 ¾	17 ¾	17 ¾	17 ¾	17 ¾	17 ¾	17 ¾
	Straight skirt, knee	22 ⅜	22 ⅜	22 ⅜	22 ⅜	22 ⅜	22 ⅜	22 ⅜	22 ⅜	22 ⅜	22 ⅜	22 ⅜
	Straight skirt, midi	27 ⅜	27 ⅜	27 ⅜	27 ⅜	27 ⅜	27 ⅜	27 ⅜	27 ⅜	27 ⅜	27 ⅜	27 ⅜
	Asymmetrical Skirt**	17 ⅛	17 ⅛	17 ⅛	17 ⅛	17 ⅛	17 ⅛	17 ⅛	17 ⅛	17 ⅛	17 ⅛	17 ⅛
	Circle Skirt	25	25	25	25	25	25	25	25	25	25	25
	Top, relaxed & fitted	24 ½	24 ¾	25	25 ¼	25 ½	25 ¾	26	26 ¼	26 ½	26 ¾	27

*For dress length, add selected bodice length to selected skirt length

**Measured along short side seam to top of slit

Body Measurements (cm), sizes 12-32

	12	14	16	18	20	22	24	26	28	30	32
High Bust	94	99	104	109	114	119	124	130	135	140	145
Full Bust, C/D Cup	102	107	112	117	122	127	132	137	142	147	152
Full Bust, E/F Cup	104	109	114	119	124	130	135	140	145	150	155
Full Bust, G/H Cup	107	112	117	122	127	132	137	142	147	152	157
Waist	81	86	91	97	102	107	112	117	122	127	132
Hip	107	112	117	122	127	132	137	142	147	152	157
Bicep	31	34	36	38	40	43	45	47	49	51	54

Finished Garment Measurements (cm), sizes 12-32

		12	14	16	18	20	22	24	26	28	30	32
Full Bust, Relaxed bodice	C/D	107	112	117	122	127	132	137	142	147	152	157
	E/F	109	114	119	124	129	134	139	144	149	154	159
	G/H	111	116	121	126	131	137	142	147	152	157	162
Full Bust, Fitted Bodice	C/D	97	103	108	113	118	123	128	133	138	143	148
	E/F	100	105	110	115	120	125	130	136	141	146	151
	G/H	103	108	113	118	123	128	133	138	143	148	153
Waist (no elastic)	Skirt/Dress, all views	81	86	91	97	102	107	112	117	122	127	132
	Top, Relaxed	97	102	107	112	117	122	127	132	137	143	148
	Top, Fitted	93	98	103	108	113	118	124	129	134	139	144
Hip	A-Line Skirt	112	117	123	128	133	138	143	148	153	158	163
	Straight Skirt	107	112	117	122	127	132	137	143	148	153	158
	Asymmetrical Skirt	107	112	117	122	127	132	137	143	148	153	158
	Circle Skirt	209	214	219	224	230	235	240	245	250	255	260
	Top, relaxed & fitted	111	117	122	127	132	137	142	147	152	157	162
Bicep	Long Sleeve	38	39	40	40	42	45	47	49	51	53	55
	Straight Sleeve	34	37	39	41	43	45	48	50	52	54	56
	Bishop Sleeve	35	37	40	42	44	46	48	51	53	55	57
Back Length*	Relaxed Bodice	42	43	43	44	44	45	46	46	47	48	48
	Fitted Bodice	38	38	39	40	40	41	42	42	43	43	44
	A-Line Skirt, knee	57	57	57	57	57	57	57	57	57	57	57
	A-Line Skirt, maxi	99	99	99	99	99	99	99	99	99	99	99
	Straight skirt, short	45	45	45	45	45	45	45	45	45	45	45
	Straight skirt, knee	57	57	57	57	57	57	57	57	57	57	57
	Straight skirt, midi	70	70	70	70	70	70	70	70	70	70	70
	Asymmetrical Skirt**	43	43	43	43	43	43	43	43	43	43	43
	Circle Skirt	64	64	64	64	64	64	64	64	64	64	64
	Top, relaxed & fitted	62	63	64	64	65	65	66	67	67	68	69

*For dress length, add selected bodice length to selected skirt length

**Measured along short side seam to top of slit

Fabric Requirements, sizes 12-32

To find the total yardage required for the style of Grafton you are making, add up the applicable bodice, sleeve, and skirt yardages noted below.

45" and 55" wide fabric is listed in yards; 115 cm and 140 cm wide fabric is listed in meters.

Bodices

RELAXED BODICE, Sleeved or Sleeveless, All necklines - Main		12 - 16	18 - 24	26 - 32
45" wide	Dress bodice (w/ or w/o waistband)	1 ½	1 ⅝	1 ¾
	Top	2	2 ⅛	2 ⅛
55" wide	Dress bodice (w/ or w/o waistband)	1 ⅛	1 ½	1 ¾
	Top	1 ⅜	2	2 ⅛
115 cm wide	Dress bodice (w/ or w/o waistband)	1.4	1.5	1.6
	Top	1.7	1.8	1.9
140 cm wide	Dress bodice (w/ or w/o waistband)	1	1.4	1.6
	Top	1.2	1.7	1.9

RELAXED BODICE, Sleeved or Sleeveless, All necklines, W/ or w/o waistband - Lining		12 - 16	18 - 24	26 - 32
45" wide	Dress bodice (w/ or w/o waistband)	1 ⅜	1 ⅜	1 ½
	Top	1 ¾	1 ⅞	1 ⅞
55" wide	Dress bodice (w/ or w/o waistband)	1 ⅛	1 ⅜	1 ½
	Top	1 ⅜	1 ⅞	1 ⅞
115 cm wide	Dress bodice (w/ or w/o waistband)	1.2	1.3	1.3
	Top	1.6	1.7	1.7
140 cm wide	Dress bodice (w/ or w/o waistband)	1	1.3	1.3
	Top	1.2	1.7	1.7

FITTED BODICE, Sleeved or Sleeveless, All necklines, W/ or w/o waistband - Main		12 - 16	18 - 24	26 - 32
45" wide	Dress bodice (w/ or w/o waistband)	1 ⅛	1 ½	1 ¾
	Top	1 ⅞	2 ⅛	2 ⅜
55" wide	Dress bodice (w/ or w/o waistband)	1	1 ⅛	1 ⅜
	Top	1 ¼	1 ⅝	2
115 cm wide	Dress bodice (w/ or w/o waistband)	1	1.4	1.6
	Top	1.7	1.9	2
140 cm wide	Dress bodice (w/ or w/o waistband)	0.9	1	1.3
	Top	1.1	1.4	1.8

FITTED BODICE, Sleeved or Sleeveless, All necklines, W/ or w/o waistband - Lining		12 - 16	18 - 24	26 - 32
45" wide	Dress bodice (w/ or w/o waistband)	1	1 ¼	1 ⅜
	Top	1 ¾	1 ⅞	1 ⅞
55" wide	Dress bodice (w/ or w/o waistband)	¾	1	1 ⅜
	Top	1	1 ⅝	1 ⅞
115 cm wide	Dress bodice (w/ or w/o waistband)	0.9	1.1	1.2
	Top	1.5	1.7	1.7
140 cm wide	Dress bodice (w/ or w/o waistband)	0.6	0.9	1.2
	Top	0.9	1.4	1.7

Sleeves

SLEEVES, relaxed bodice		12 - 16	18 - 24	26 - 32
45" wide	Long sleeve	⅝	⅝	1
55" wide	Long sleeve	⅝	⅝	⅝
115 cm wide	Long sleeve	0.6	0.6	0.9
140 cm wide	Long sleeve	0.6	0.6	0.6

SLEEVES, fitted bodice		12 - 16	18 - 24	26 - 32
45" wide	Straight sleeve - short	⅜	⅜	⅝
	Straight sleeve - mid	⅝	⅝	⅞
	Straight sleeve - long	⅞	⅞	1 ⅜
	Bishop sleeve	1 ⅛	1 ⅛	1 ⅜
55" wide	Straight sleeve - short	⅜	⅜	½
	Straight sleeve - mid	⅝	⅝	⅝
	Straight sleeve - long	⅞	⅞	⅞
	Bishop sleeve	⅞	⅞	1 ⅛
115 cm wide	Straight sleeve - short	0.4	0.4	0.6
	Straight sleeve - mid	0.5	0.5	0.8
	Straight sleeve - long	0.8	0.8	1.3
	Bishop sleeve	1	1	1.2
140 cm wide	Straight sleeve - short	0.4	0.4	0.4
	Straight sleeve - mid	0.5	0.5	0.6
	Straight sleeve - long	0.8	0.8	0.8
	Bishop sleeve	0.7	0.8	1

Skirts

A-LINE SKIRT (w/ or w/o bodice & waistband; w/ or w/o pockets)		12 - 16	18 - 24	26 - 32
45" wide	Knee length	1 ¾	2	2 ¼
	Maxi length	2 ¾	n/a	n/a
55" wide	Knee length	1 ⅝	1 ¾	1 ⅞
	Maxi length	2 ⅝	2 ¾	2 ¾
115 cm wide	Knee length	1.6	1.7	2
	Maxi length	2.4	n/a	n/a
140 cm wide	Knee length	1.5	1.6	1.7
	Maxi length	2.4	2.5	2.6

STRAIGHT SKIRT (w/ or w/o bodice & waistband; w/ or w/o pockets)		12 - 16	18 - 24	26 - 32
45" wide	Short length	1 ½	1 ¾	1 ¾
	Knee length	1 ¾	1 ⅞	1 ⅞
	Midi length	2	2 ¼	2 ¼
55" wide	Short length	1 ¼	1 ½	1 ¾
	Knee length	1 ⅜	1 ¾	1 ⅞
	Midi length	1 ½	2	2 ¼
115 cm wide	Short length	1.3	1.5	1.5
	Knee length	1.5	1.7	1.7
	Midi length	1.8	2	2
140 cm wide	Short length	1.1	1.3	1.5
	Knee length	1.2	1.5	1.7
	Midi length	1.4	1.8	2

ASYMMETRICAL SKIRT (w/ or w/o bodice & waistband; w/ or w/o pockets)	12-16	18-24	26-32
45" wide	2 ½	2 ⅞	3 ¼
55" wide	1 ¾	2 ½	2 ⅞
115 cm wide	2.3	2.6	2.9
140 cm wide	1.6	2.2	2.6

CIRCLE SKIRT (w/ or w/o bodice & waistband)	12 - 16	18 - 24	26 - 32
45" wide	4 ⅛	4 ½	5
55" wide	3 ⅜	3 ½	3 ¾
115 cm wide	3.8	4.1	4.6
140 cm wide	3.1	3.2	3.4

See #graftondress on Instagram

Grafton tops with Irving skirt

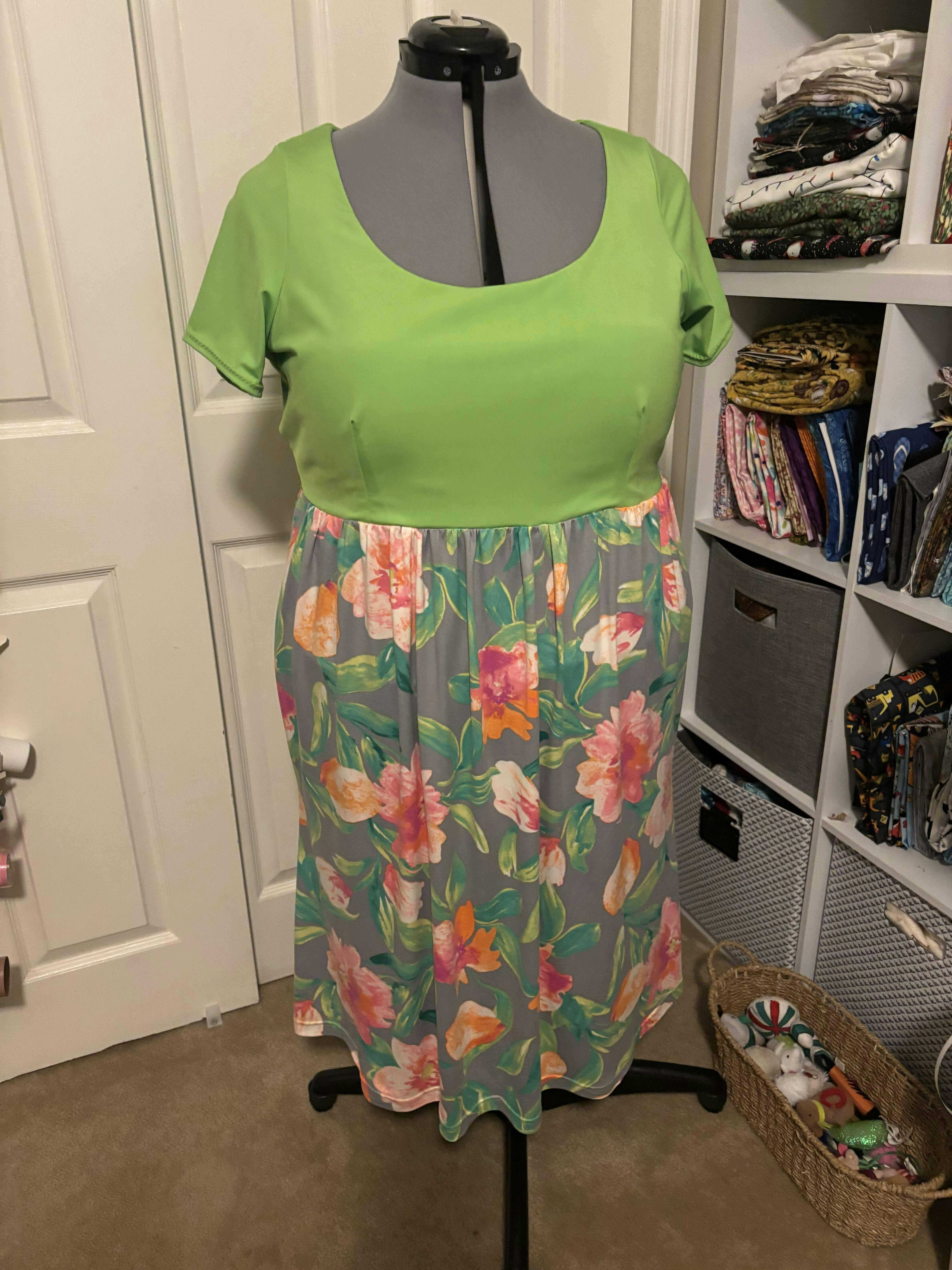

I made a Grafton fitted bodice and relaxed bodice and attached them to Irving skirts. These patterns make it so easy to fit. They are made for a real person not a Barbie doll. I made a muslin for the tops and skirt. I used the muslin skirt for an actual skirt. I feel so good about sewing clothes now.

Lovely Dress & Perfect Fit

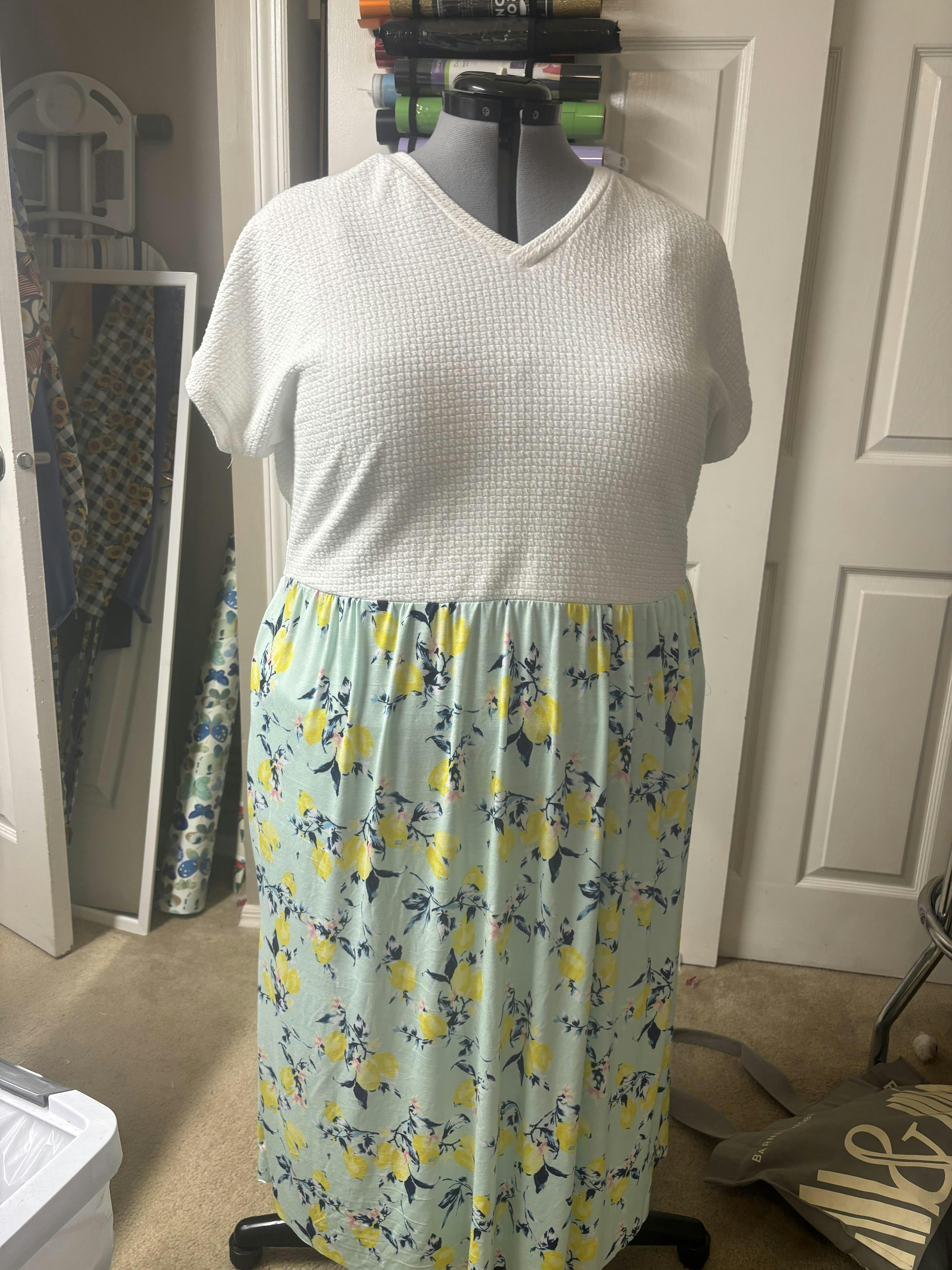

I made two Grafton dresses this month, one with the square neckline and one with a V neckline. Both fit perfectly! Both were quick and easy to sew. I love the neckline box option to make different looks. Excellent pattern!

Fabulous Grafton

Love this pattern will be sewing it again so many variations very easy to sew. I raised the neckline by an inch . I cut a 20 GH tapering to 22/24 for hips and waist it fit well.

Perfect bridesmaid dress

I made the square neckline, fitted bodice, and the A line skirt. I added flutter sleeves from a different pattern. Added a belt and boom! Bridesmaid ready! Loads of compliments. Instructions and drafting are wonderful. Can’t wait to try different variations!

Grafton Dress, Top & Skirt Mix & Match Pack 12-32 PDF pattern

good

made a dress with fitted top, turtle neck and a-line skirt and am quite pleased with the outcome. Its a bit more relaxed than my beloved Rivermont dress (made at least 7 of this pattern), but much faster to sew. Will try other variations soon

1 2

Grafton Dress, Top & Skirt Mix & Match Pack

Grafton Dress, Top & Skirt Mix & Match Pack

Size Size guide

Pattern format

Product information

SEWING LEVEL

SIZING

RECOMMENDED FABRIC

NOTIONS

Pattern features

BODICE

NECKLINE

SLEEVE

SKIRT

PDF pattern information

Model Details

Learn More

Related Posts

Fabric Requirements & Measurements

Body Measurements (in), sizes 12-32

Finished Garment Measurements (in), sizes 12-32

Body Measurements (cm), sizes 12-32

Finished Garment Measurements (cm), sizes 12-32

Fabric Requirements, sizes 12-32

Bodices

Sleeves

Skirts

Customer Reviews

Grafton Dress, Top & Skirt Mix & Match Pack

Grafton Dress, Top & Skirt Mix & Match Pack

Size Size guide

Pattern format

Product information

SEWING LEVEL

SIZING

RECOMMENDED FABRIC

NOTIONS

Pattern features

BODICE

NECKLINE

SLEEVE

SKIRT

PDF pattern information

Model Details

Learn More

Related Posts

Fabric Requirements & Measurements

Body Measurements (in), sizes 12-32

Finished Garment Measurements (in), sizes 12-32

Body Measurements (cm), sizes 12-32

Finished Garment Measurements (cm), sizes 12-32

Fabric Requirements, sizes 12-32

Bodices

Sleeves

Skirts

Customer Reviews

GET 10% OFF YOUR NEXT PURCHASE
